Product

Turret-Type Mill-Turn Machine

ø5–ø100

Machining capacity (outer diameter)

±0.025 mm

Standard tolerance; ±0.005 mm achievable

30+ years

Manufacturing experience

~20 units

Custom secondary-processing machines

德恒模版3.jpg 德恒模版.jpg

The key to achieving this "multi-tasking" capability lies in the live turret (or live tool turret). Such a turret can accommodate not only stationary turning tools but also milling cutters and drill bits that are driven to rotate by a servo motor.

When milling is required, the live tool rotates; combined with the indexing or slow rotation of the main spindle (C-axis function), this enables operations such as milling flats, drilling, and tapping to be performed on a single workpiece.

Tsugami CNC Lathes

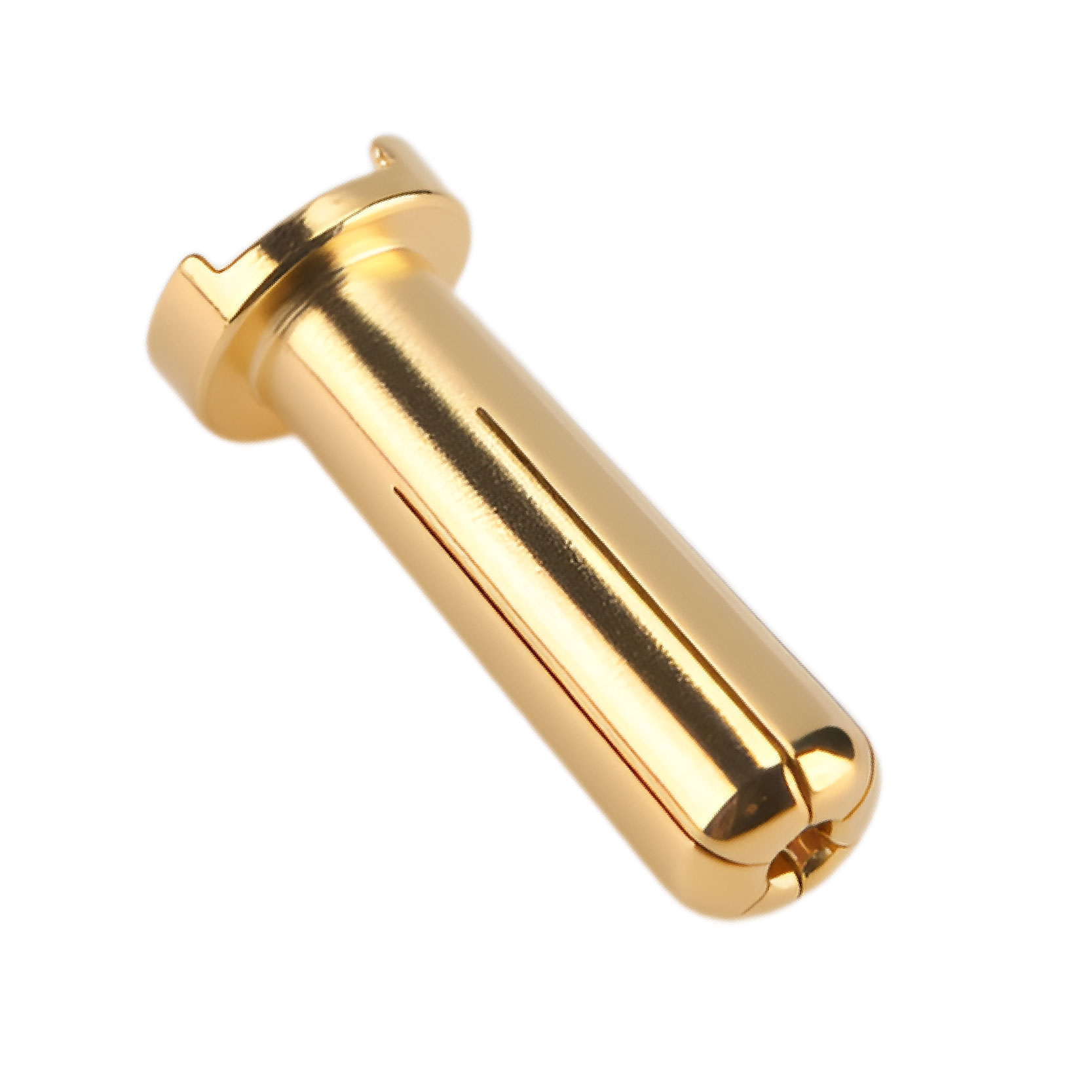

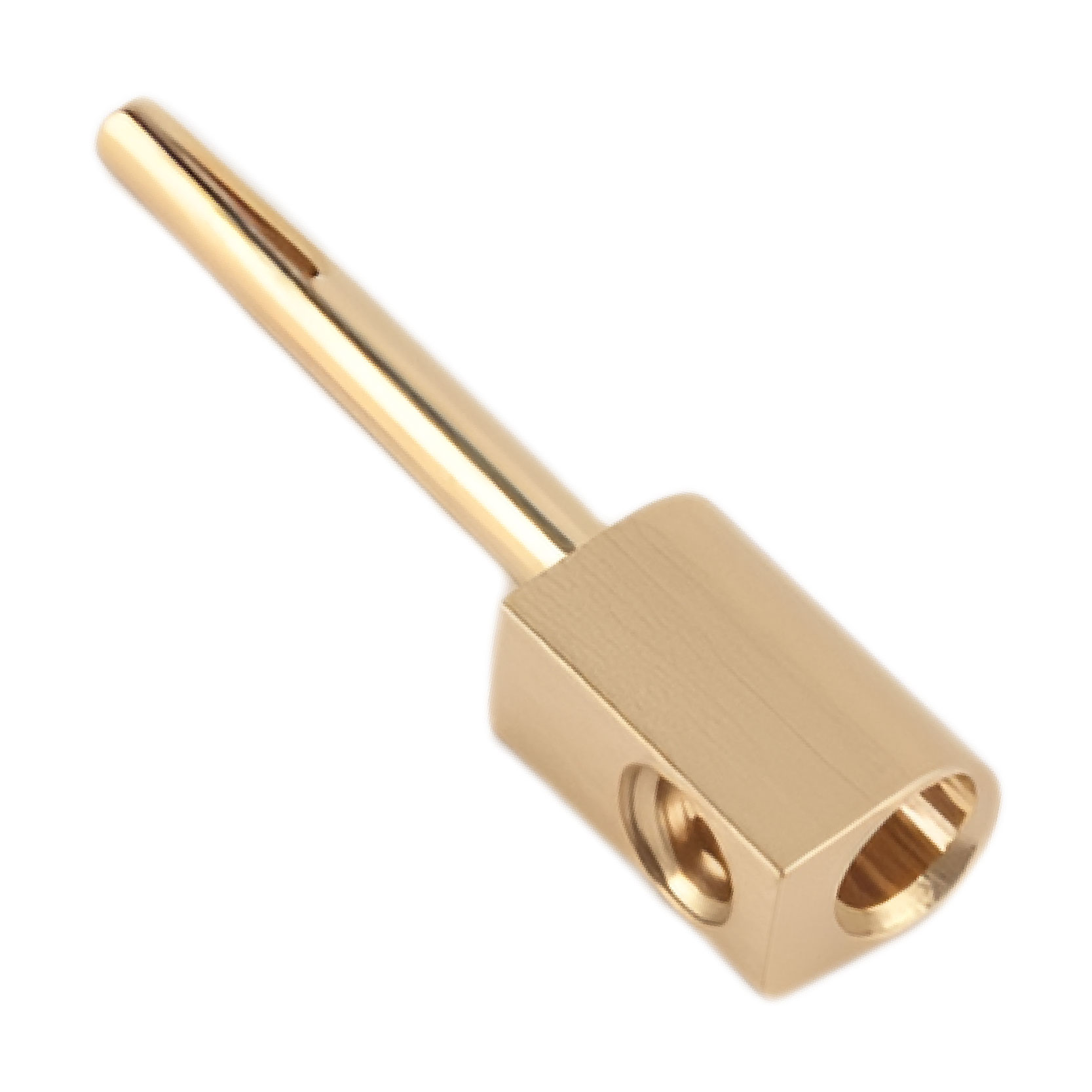

We use Tsugami B0208W machines for turning and milling various electrical connector pins and custom-shaped hardware components. Our maximum machining capacity covers an outer diameter range of ø0.6mm–ø20 mm.

Key advantages include single-setup forming and strong back-spindle machining capabilities, enabling complex operations such as milling, drilling, and tapping. These machines are ideal for manufacturing precision parts for the automotive, medical, high-speed rail, and aerospace sectors.

Specification	Detail
Machine models	Tsugami B0208W, Tsugami S206V
Machining capacity	Outer diameter ø0.6 mm – ø20 mm
Process integration	Single-setup forming; turning, milling, drilling and tapping in one setup
Back-spindle machining	Strong capability for complex second-side operations
Tolerance	±0.025 mm standard; ±0.005 mm achievable depending on the product's structural design
Typical applications	Automotive, medical, high-speed rail and aerospace precision parts

Our company also operates Tsugami machines such as the S206V for product machining to meet more customers' custom requirements. Please contact our engineering team via WhatsApp (top-right corner) or email to request a quote.

Ming Yuda's Greatest Advantage

CNC automatic lathes and CNC lathes — professional engineers and experienced operators.

Engineering Review

Upon receiving customer drawings, our engineers conduct a comprehensive assessment of specifications—including dimensions, tolerances, material requirements, and plating thickness.

Process Selection and Quotation

We select the most efficient, reliable, and cost-effective manufacturing processes to formulate our quotations.

Tolerance Control

Leveraging over 30 years of manufacturing experience, we maintain product tolerances at ±0.025 mm, and can achieve ±0.005 mm depending on the product's structural design.

If your product is still in the early development stage, we offer a range of recommended solutions to ensure the final product meets your specific application requirements.

We support both small-batch prototyping and full-scale mass production, with dedicated sales personnel assigned to manage the entire process.

Various types of secondary processing equipment

Our company has approximately 20 custom-built secondary processing machines, designed to better process the cross slots and soldering cup areas of products.

We also have medium-speed wire EDM equipment. If products require wire-cut diagonal square slots, we can also perform secondary processing.

Regarding annealing, heat treatment, welding, airtightness testing, etc., our company is equipped with professional equipment and quality-standard operating procedures for processing and production.

Request a Quote

For further information, please contact our personnel via email for inquiries.

Our Advantages in Mill-Turn Machining

High Precision: We achieve exceptional precision and stable tolerances. How do we ensure this? We utilize high-performance equipment and maintain rigorous personnel management. Our company operates under a strict quality inspection system. During production, in addition to operators checking product dimensions while setting up the equipment, we employ roving inspectors who verify quality at set intervals—every hour for critical processes and every two hours for key processes.

Consistency and Repeatability

Once the CNC program is set up, the equipment performs repetitive machining operations on every component, ensuring consistent quality during mass production.
