High-Precision Custom Claw Spring Pin Connector (OD 3.96mm)

Product Overview

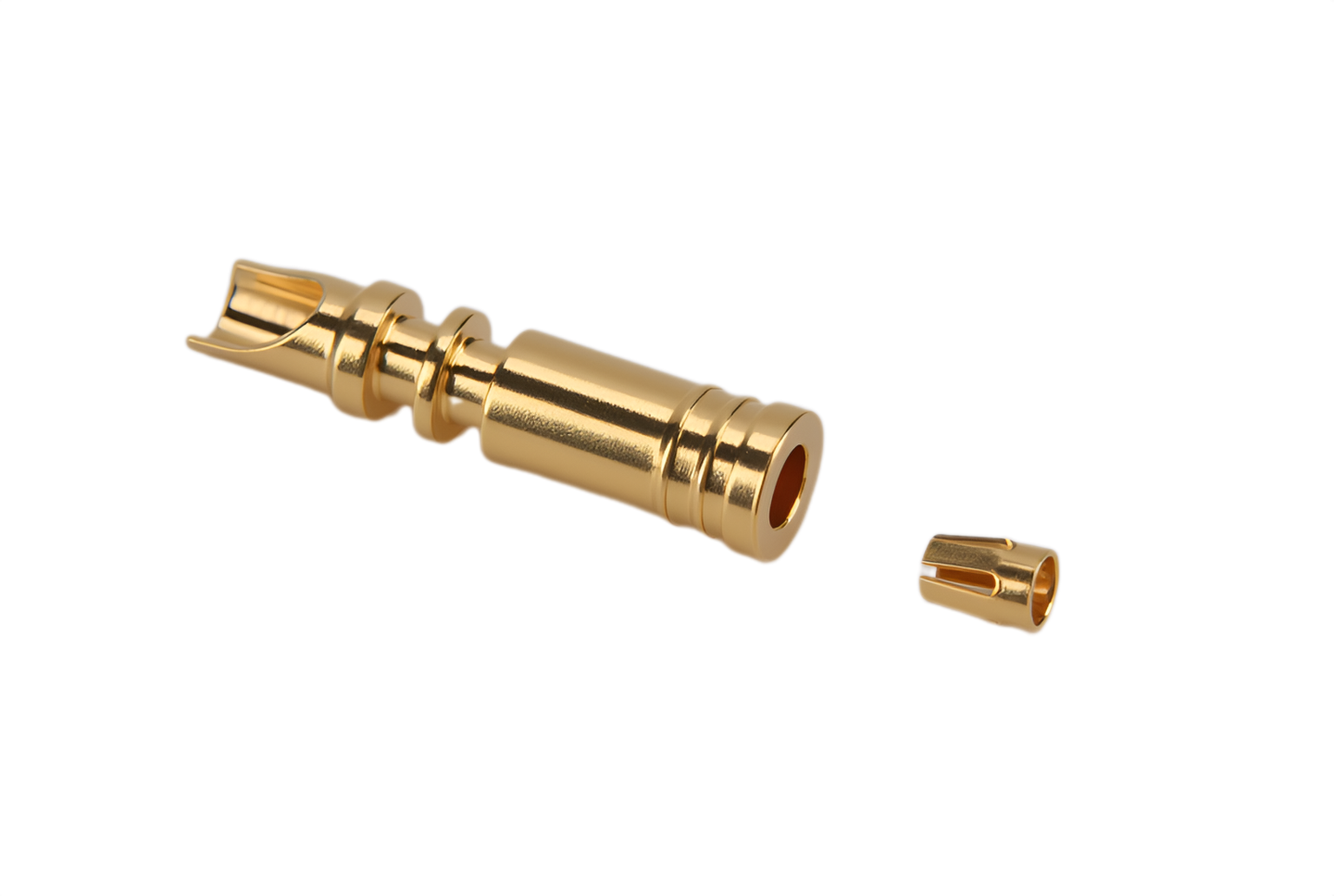

This premium High-Current Claw Spring Pin Connector is engineered for high-end applications demanding flawless signal transmission, high-cycle durability, and exceptionally low contact resistance. Featuring a precision-machined C360 brass shell and a high-elasticity beryllium copper claw spring insert, this dual-component system guarantees stable and continuous electrical connectivity even under continuous vibration and mechanical stress.

With its advanced multi-point contact architecture, this micro-hardware solution is optimized for high-density electronic assemblies, advanced test probes, and heavy-duty industrial interconnect systems.

Key Features & Technical Advantages

• Superior Mechanical Resiliency: The inner connector insert utilizes premium beryllium copper (BeCu) treated for maximum hardness, ensuring thousands of mating cycles without tension loss or fatigue.

•


• Ultra-Low Contact Resistance: Engineered with a specialized claw spring structure that maximizes contact surface area, preventing voltage drops and securing heavy-current carrying capacity.

• Advanced Multi-Layer Surface Finish: Fully processed with a high-purity precious metal coating over a Copper + Nickel base (Cu 40U" + Ni 100-160U") to provide outstanding anti-wear properties and absolute corrosion protection without signal degradation.

• Compliance & Environmental Reliability: Crafted strictly from raw materials that meet strict EU RoHS environmental requirements, ensuring global market accessibility and eco-friendly compliance.

Technical Specifications

High-End Applications

Designed to perform flawlessly under severe mechanical and electrical conditions, this claw spring pin assembly is widely trusted across professional technical fields:

• Semiconductor Testing & Burn-in Fixtures: High-precision IC test sockets and automated testing interfaces demanding durable, repeatable contact.

• Data Centers & Telecommunications: Heavy-duty power supply routing, backplane connectors, and high-speed network switches.

• Industrial Automation & Robotics: Rugged multi-pin power couplers, automated arms controls, and high-vibration sensory feedback cables.

• Medical Electronic Equipment: Diagnostic imaging machinery plugs, patient monitoring cable assemblies, and specialized internal power modules.

• Automotive & EV Electronics: Charging interface modules, battery management systems (BMS), and ruggedized on-board computer units.

Quality Assurance & Reliability Data

We enforce a rigorous, zero-defect quality inspection workflow for all precision hardware plug-ins and machining components in our manufacturing facility.

📌 Quality Certification Note: Our in-house laboratory verifies every production batch utilizing advanced 3D digital projectors for geometric profiling and FISCHER thickness gauges for precise coating depth verification. Complete material certifications and technical inspection sheets are available upon request.

Customization & OEM/ODM Service Workflow

As an established manufacturer specializing in connector precision hardware plug-ins and machining precision hardware, we provide a seamless custom engineering service to match your exact blueprints:

1. Blueprint Submission: Send us your 2D/3D technical drawings (STEP, IGES, PDF, or DWG) with specific tolerance requirements.

2. Technical Feasibility Review: Our engineering team reviews the design, optimizing for mass production and quoting within 24 hours.

3. Precision Prototyping: Small-scale sample runs to verify dimensional correctness, fitment, and surface quality.

4. Mass CNC Production: High-volume automated manufacturing with rigorous in-line quality gates to ensure consistency.

5. Global Delivery Protection: Secure, customized anti-static/anti-collision packaging to protect precision threads and delicate pins during international transit.
